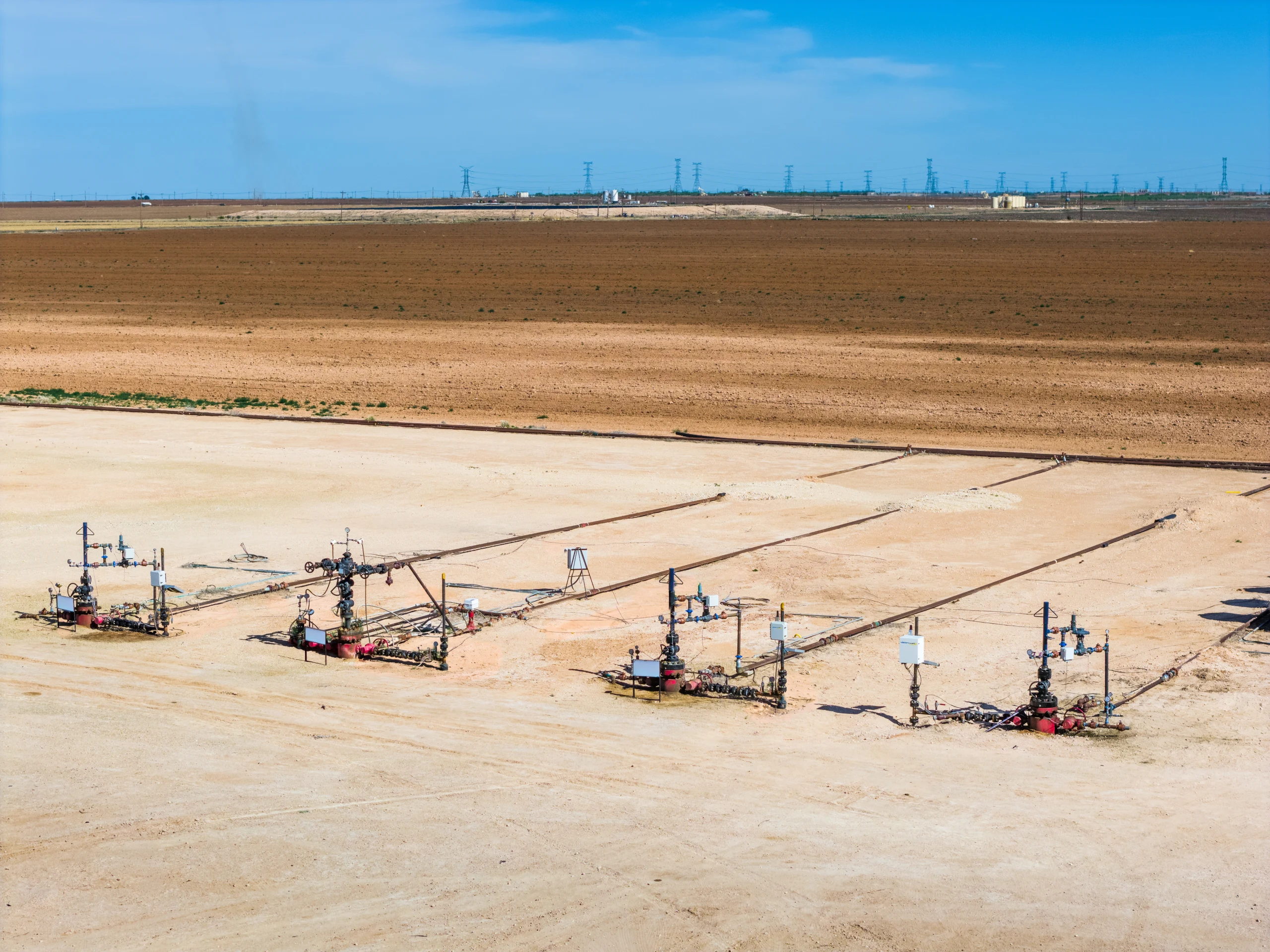

Liberty Lift has built one of the most comprehensive plunger lift product lines in the industry. From high-rate new completions to mature wells approaching end of life, our systems are engineered to deliver reliable, optimized production at every stage.
Our plunger lift solutions are especially effective when combined with continuous gas lift in unconventional resource plays. The plunger’s sealing capability reduces required injection rates, lowers flowing tubing pressure and supports smoother transitions to deeper valves, resulting in lower flowing bottomhole pressure and improved overall production.

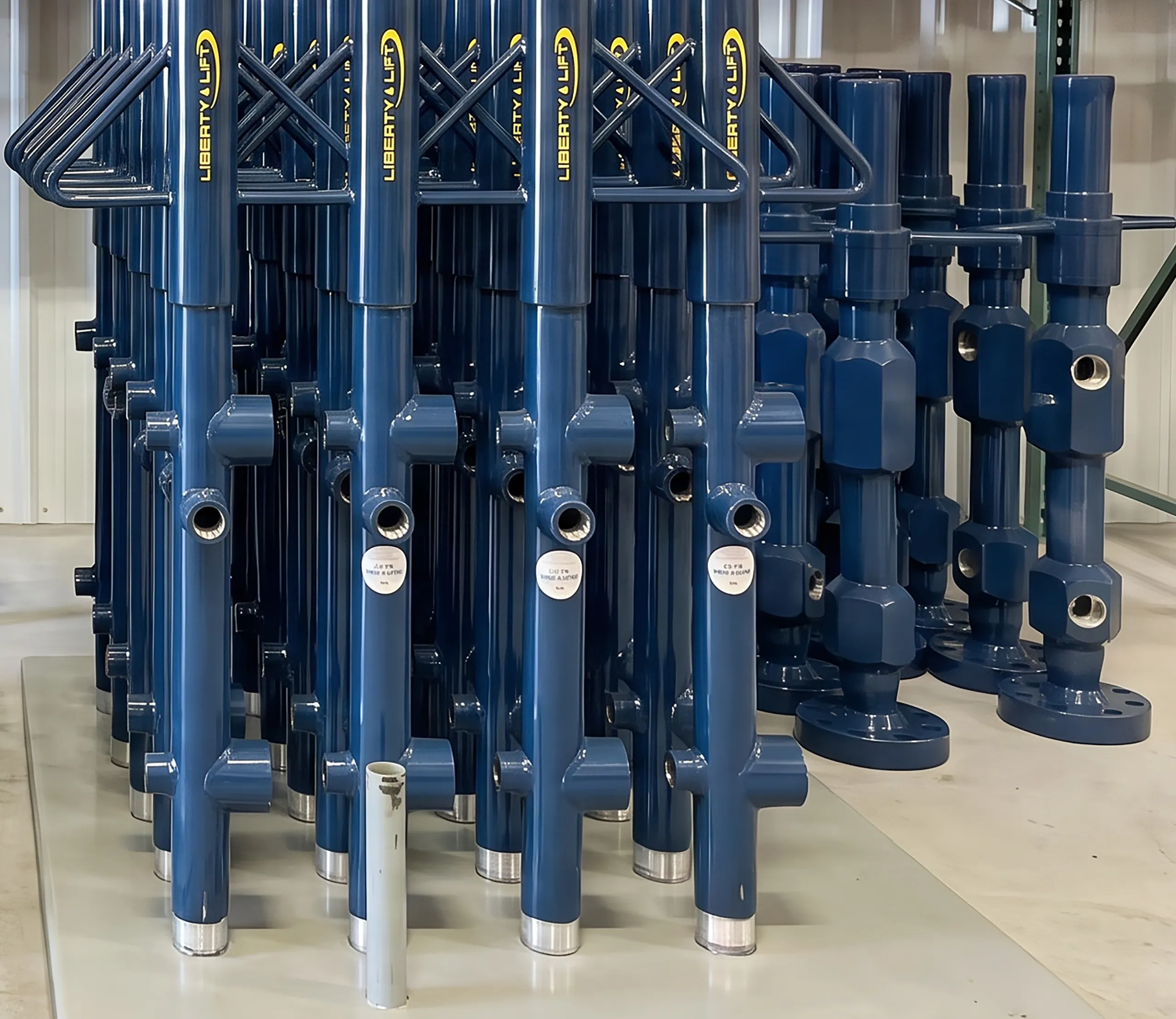

Liberty Lift offers a comprehensive range of lubricators available in multiple sizes, pressure ratings and configurations including 3,000 psi, 5,000 psi and 10,000 psi models. Options include flanged, threaded and drop-in designs to accommodate a wide variety of wellsite requirements. All components are designed and tested in accordance with API 11PL specifications for safe, reliable and consistent performance.

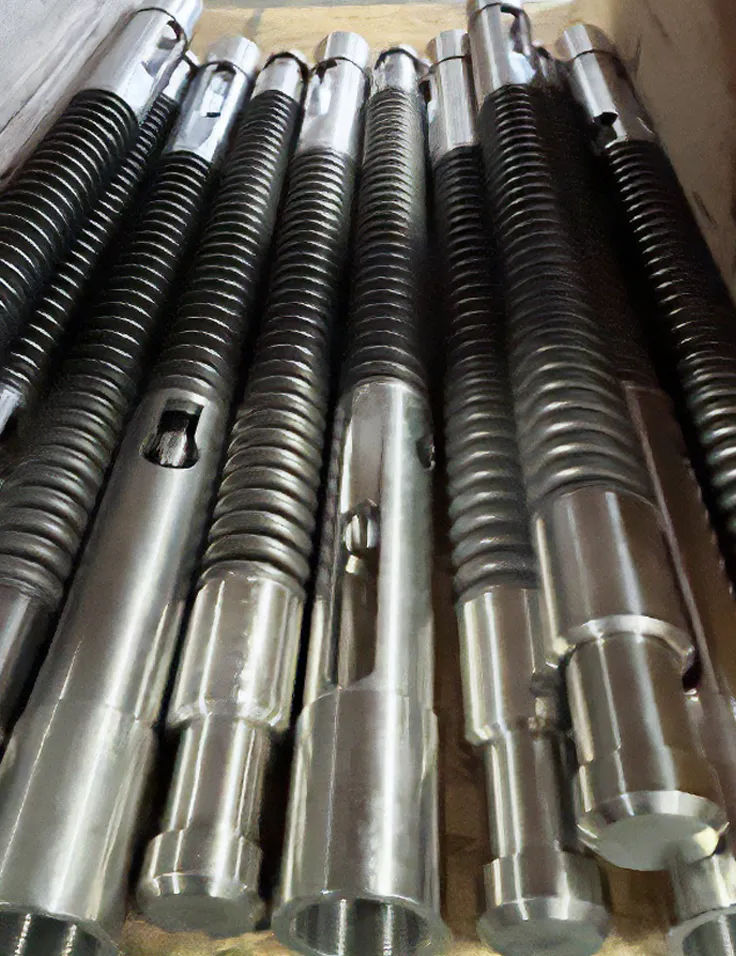

Liberty Lift’s downhole springs and supporting components are engineered and rigorously tested to withstand extreme conditions and repeated impacts common in downhole environments. We offer two distinct spring solutions designed to meet both short-term and long-term cost priorities.
Our patented interlocking spring design is the first in the industry that can be fully rebuilt. Individual components can be replaced during routine inspections rather than requiring full assembly replacement, reducing replacement costs by up to one-third. For operators managing large plunger lift fields, the long-term savings are significant.
For operators prioritizing lower upfront cost, our heavy-duty standard spring offers a reliable, economical solution with a unique tapered connection and traditional assembly.

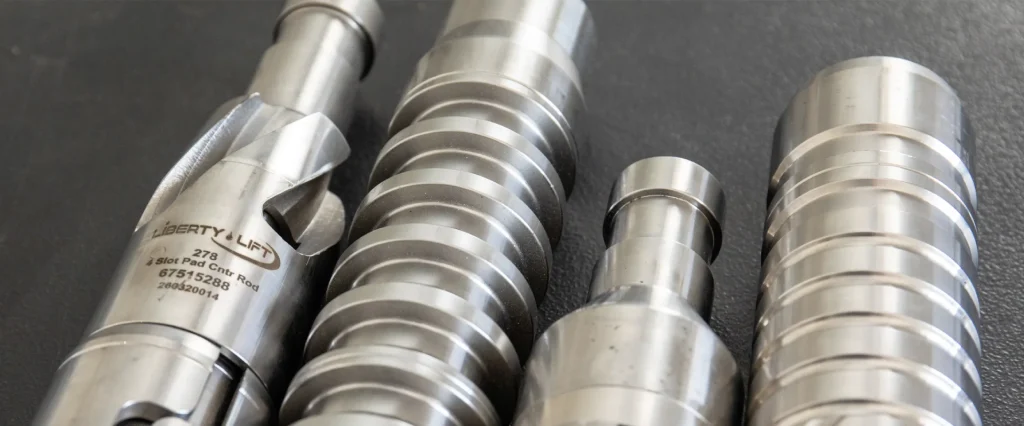

Liberty Lift offers a comprehensive lineup of plungers engineered to deliver the right solution at the right time. Every plunger in our portfolio is both impact tested and field tested to ensure consistent reliability, extended service life and optimal lift efficiency across a wide range of operating conditions.
Our two-piece ball and sleeve plunger and dart bypass plunger are ideal for high-rate flowing wells and gas lift applications. Available in multiple sleeve lengths, ball weights and slot configurations to match specific well characteristics and flow conditions. Available in 2 3/8" and 2 7/8".
The Rubicon Fast Fall plunger maintains steady production during decline. Available in solid and padded versions with multiple choke size options. Available in 2 3/8" and 2 7/8".
Available in alloy and 17-4 SS in multiple lengths and variations including solid, spiral, cleanout, brush and padded versions, single and dual pad. Available in 2 3/8" and 2 7/8".
Liberty Lift offers two proven automation solutions for plunger lift wells, designed to meet operators wherever they are. Whether it is a simple, reliable standalone controller for straightforward field deployment or a fully connected remote monitoring and control platform for managing large plunger lift fields from anywhere, both options are built to maximize production efficiency while minimizing downtime and unnecessary intervention.

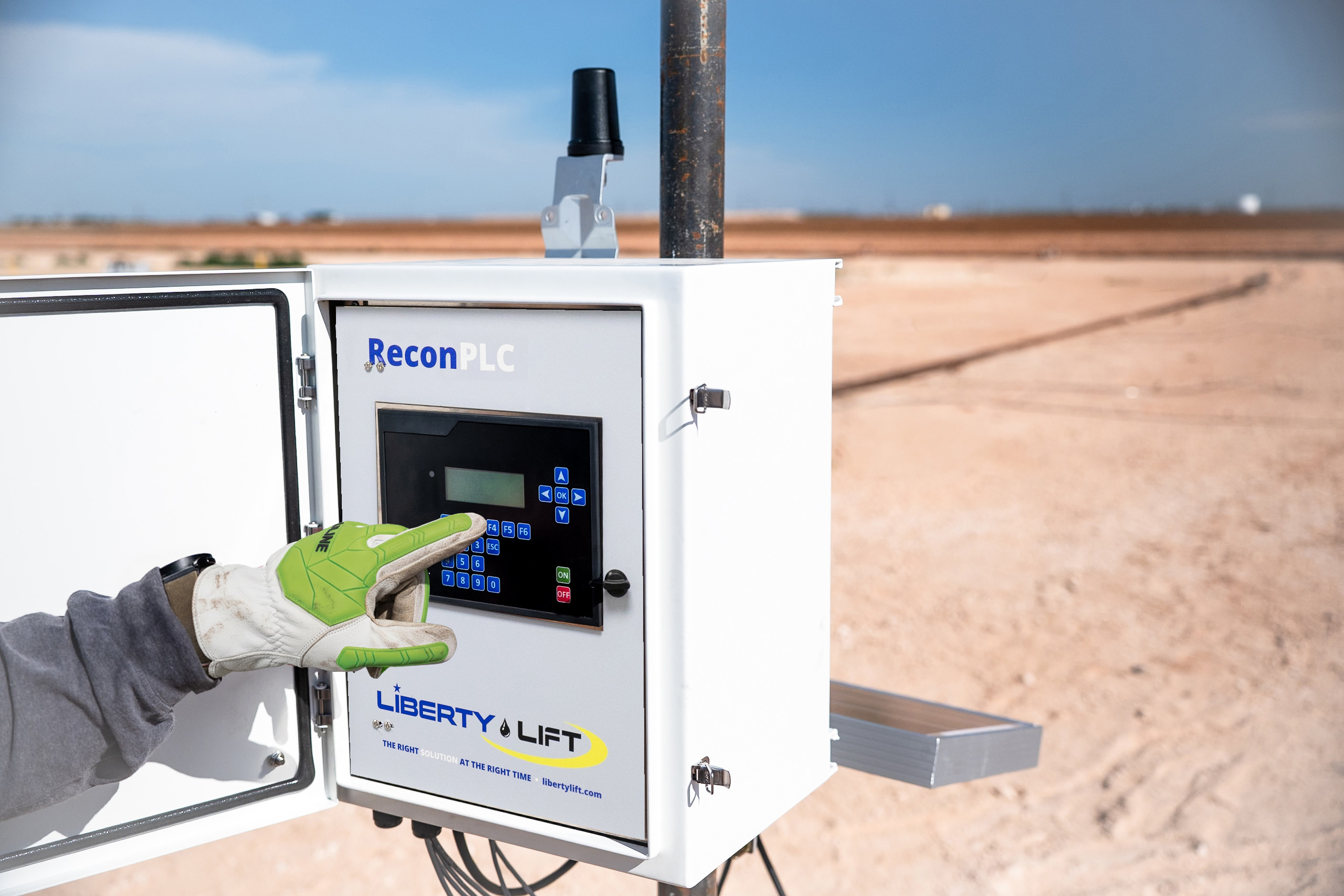

The Liberty ReconPLC gives operators real-time visibility and remote control from any device via the Recon Command Cloud dashboard, with multiple operating modes and configurable triggers built specifically for plunger lift performance. For operators who need a straightforward field solution without full remote connectivity, the LL Auto Plunger Controller continuously adapts to changing well conditions on a cycle-by-cycle basis, no constant intervention required.
