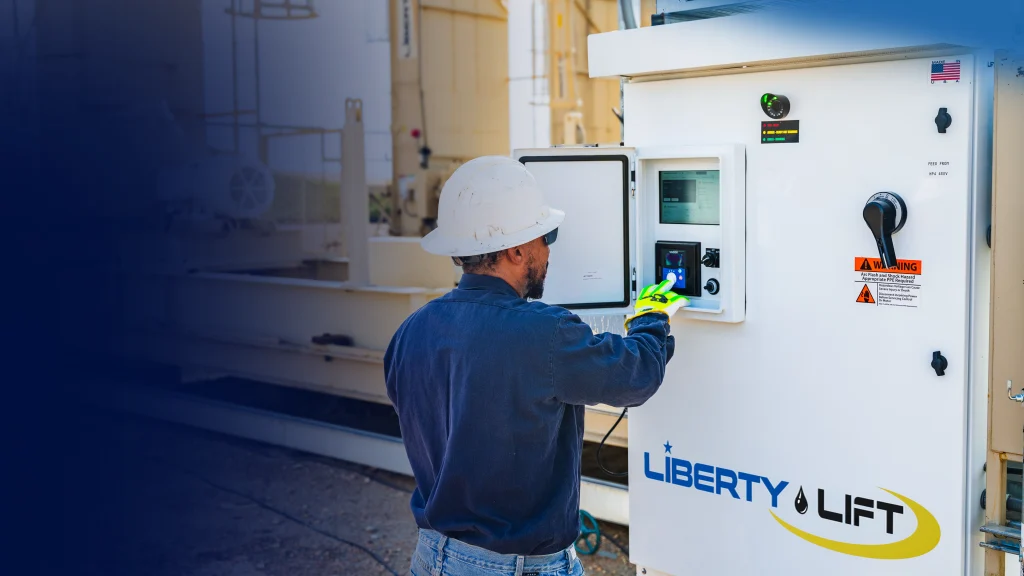

Automation: Reciprocating Rod Lift

Smart automation. Every stage of rod lift.

From pump-off control to full-system optimization, Liberty Lift delivers the automation tools to keep your rod lift wells producing at their best.
TALK TO AN EXPERT

Smart automation for every stage of rod lift

Rod lift wells are dynamic systems and managing them effectively requires more than a timer and a basic controller. Liberty Lift offers a comprehensive suite of RRL automation solutions designed to reduce downtime, optimize production and put real-time data in the hands of the people who need it.

Whether you’re running conventional beam pumping units, XL Long Stroke units, or a mix of both across a large field, our automation portfolio scales to fit.

Liberty lift | rrl automation & controls

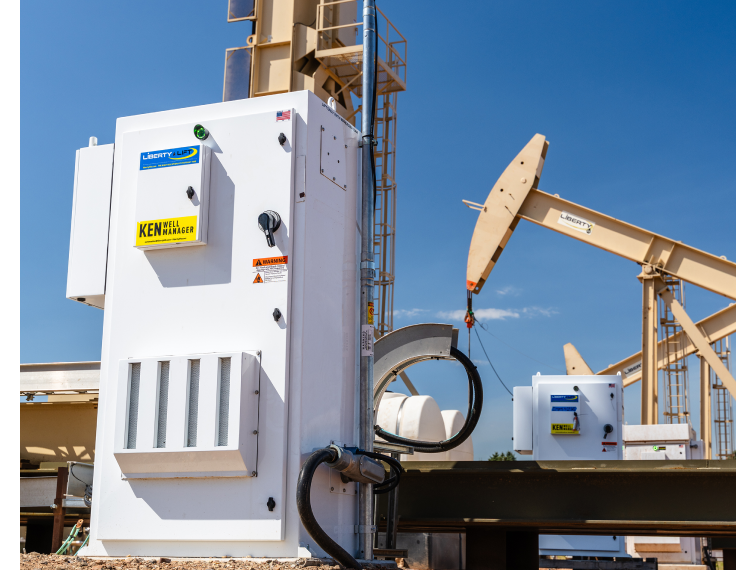

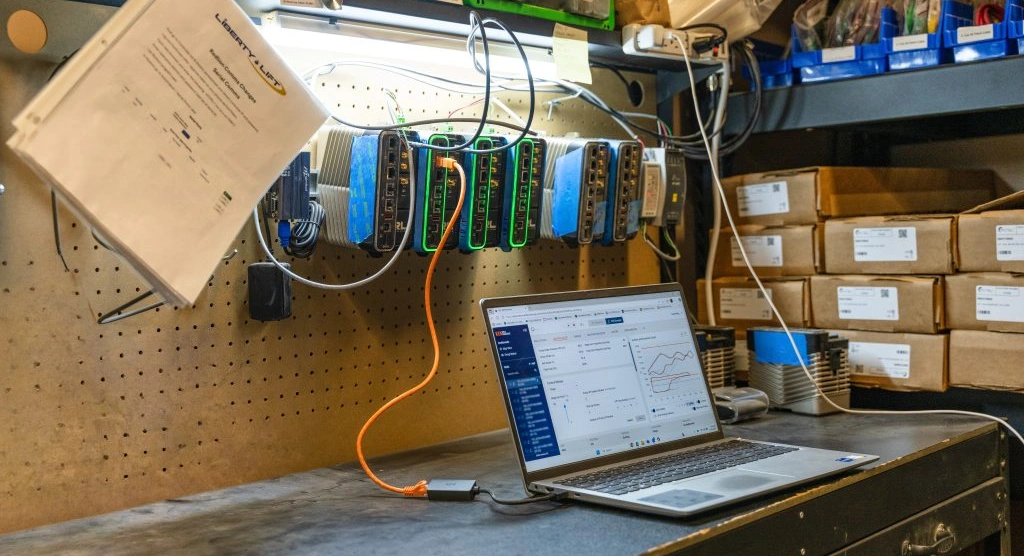

Ken Well Manager

The Ken Well Manager (KWM) is Liberty Lift’s flagship RRL automation platform and one of the most capable pump-off controllers available in the industry today. Built on a rugged IIoT edge device, the KWM combines real-time surface and downhole data, advanced control algorithms and cloud-based accessibility into a single system purpose-built for rod pumped wells.

DOWNLOAD KEN WELL MANAGER OVERVIEW

What Sets the KWM Apart

  • IIoT Edge Device Platform
  • Rugged industrial-grade hardware built for continuous field operation
  • Built-in cellular communications - no ancillary radios required
  • Optional satellite communication packages available
  • VPN included with every KWM SIM card
  • Wide operating temperature range for reliable performance in any environment
  • High-resolution, anti-glare touchscreen for clear visibility in all conditions

Advanced Control & Diagnostics

  • Advanced VFD speed control with industry-leading 12-zone capability
  • Dynamic pump leakage algorithm and PIP control mode
  • Stroke-by-stroke plunger velocity overlaid with the downhole pump card
  • Live casing and tubing pressure trending for remote pump action verification
  • Color-coded zone control surface cards for simplified setup and tuning
  • Seamless integration with Liberty Lift XL Unit Sentry - no additional position sensor required
  • Dynamic control algorithms that adapt to changing well conditions

Cloud-Based Interface

  • Real-time surface and downhole cards accessible from anywhere
  • Secure data access with or without a SCADA system
  • Custom callout functionality via text or email to reduce alarm fatigue and unnecessary wellsite visits
  • Real-time data, event, and security logging via microSD or FTP
  • Multiple free firmware releases per year - each typically adding 1 to 20 new features
  • Currently eliminates approximately 150 service calls per month, reducing an estimated 22,500 miles and 300 man-hours of travel monthly*

*Based on approximately 1,000 wells with over-the-air updates.

Expandable I/O Platform

  • 6 Analog Inputs (2 high-speed for load and position)
  • 2 Analog Outputs
  • 8 Digital Inputs
  • Modular design supports expansion for additional capabilities

Well Monitoring Services

  • Optional daily, weekly, or monthly well check reports
  • Remote troubleshooting and over-the-air fixes without requiring a site visit
  • Optimization support from Liberty Lift's in-house rod pumping experts

Best-in-Class End Devices

Liberty Lift installs permanent in-well monitoring systems that give operators detailed, real-time information about their wellbore, reservoir and lift system performance.

  • Industry-leading accuracy for load and position sensing
  • Simple, safe, and precise installation
  • Maintenance-free operation with best-in-class warranty
  • Eliminates misplaced crank sensors and inaccurate position data

What Sets the KWM Apart

  • IIoT Edge Device Platform
  • Rugged industrial-grade hardware built for continuous field operation
  • Built-in cellular communications - no ancillary radios required
  • Optional satellite communication packages available
  • VPN included with every KWM SIM card
  • Wide operating temperature range for reliable performance in any environment
  • High-resolution, anti-glare touchscreen for clear visibility in all conditions

Advanced Control & Diagnostics

  • Advanced VFD speed control with industry-leading 12-zone capability
  • Dynamic pump leakage algorithm and PIP control mode
  • Stroke-by-stroke plunger velocity overlaid with the downhole pump card
  • Live casing and tubing pressure trending for remote pump action verification
  • Color-coded zone control surface cards for simplified setup and tuning
  • Seamless integration with Liberty Lift XL Unit Sentry - no additional position sensor required
  • Dynamic control algorithms that adapt to changing well conditions

Cloud-Based Interface

  • Real-time surface and downhole cards accessible from anywhere
  • Secure data access with or without a SCADA system
  • Custom callout functionality via text or email to reduce alarm fatigue and unnecessary wellsite visits
  • Real-time data, event, and security logging via microSD or FTP
  • Multiple free firmware releases per year - each typically adding 1 to 20 new features
  • Currently eliminates approximately 150 service calls per month, reducing an estimated 22,500 miles and 300 man-hours of travel monthly*

*Based on approximately 1,000 wells with over-the-air updates.

Expandable I/O Platform

  • 6 Analog Inputs (2 high-speed for load and position)
  • 2 Analog Outputs
  • 8 Digital Inputs
  • Modular design supports expansion for additional capabilities

Well Monitoring Services

  • Optional daily, weekly, or monthly well check reports
  • Remote troubleshooting and over-the-air fixes without requiring a site visit
  • Optimization support from Liberty Lift's in-house rod pumping experts

Best-in-Class End Devices

  • Industry-leading accuracy for load and position sensing
  • Simple, safe, and precise installation
  • Maintenance-free operation with best-in-class warranty
  • Eliminates misplaced crank sensors and inaccurate position data
Liberty lift

Drive Packages

Liberty Lift offers two drive packages for rod lift applications, each engineered to optimize motor speed and energy performance. Both integrate seamlessly with the Ken Well Manager for full-system visibility and control.

Liberty lift | rrl automation & controls

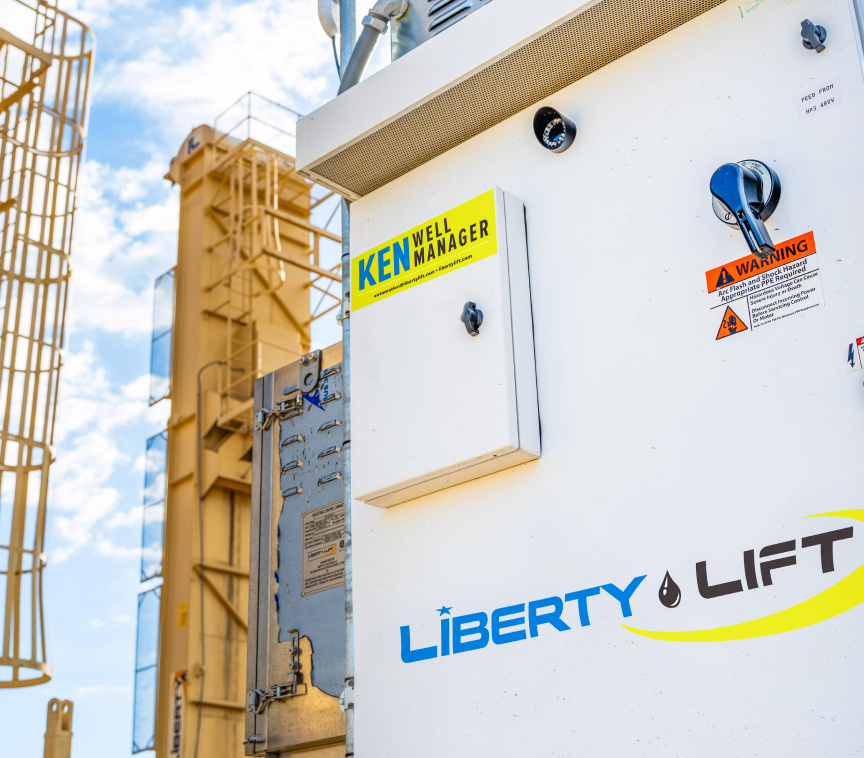

Standard, six-pulse VFD

The VFD gives operators precise variable frequency drive speed control over the pumping unit motor, allowing the system to adjust stroke rate in real time based on well conditions. The result is improved pump fillage, reduced energy consumption and less mechanical stress on the rod string and equipment.
  • Sensorless vector control for accurate motor management
  • Adjustable acceleration and deceleration with linear or S-curve profiles
  • Critical speed lockout and current limit protection
  • DC braking standard; dynamic braking not required
  • HP range: 3-100 HP at 230V / 3-300 HP at 480V
  • NEMA 3R enclosure with sun shield standard
  • Input line reactors (3%), EMI filter, and phase loss protection standard
  • RS-232 standard; RS-485, ModBus RTU, ModBus TCP, and Ethernet optional
  • Efficiency greater than 97%; power factor displacement of .98
  • Operating ambient range: -30 to 50°C

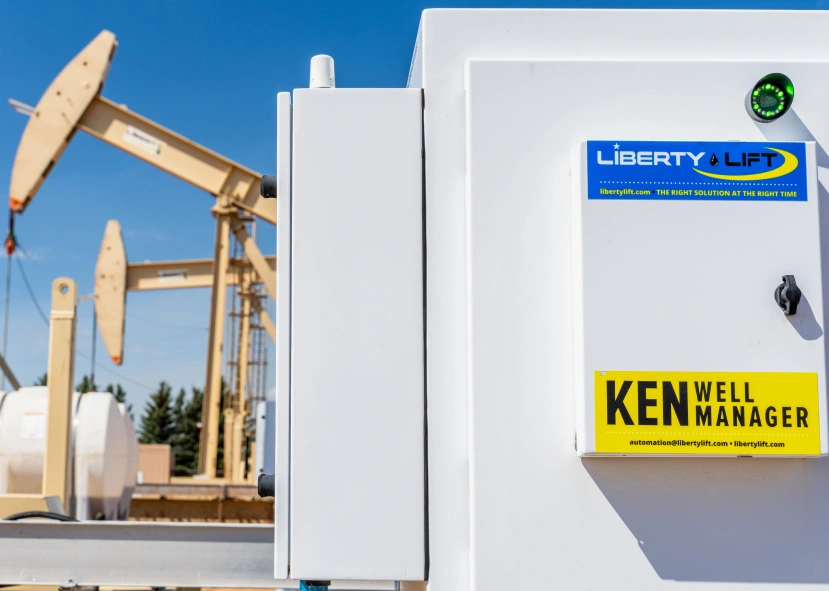

ReGen AFE

The ReGen AFE is Liberty Lift’s Active Front End VFD package – the most environmentally advanced drive option available for rod pumping systems. Unlike a conventional six-pulse VFD, the ReGen AFE has the ability to send clean, reusable power back to the grid during the out-of-balance portion of the pumping unit cycle. When operators coordinate with their energy provider to enable grid regeneration, the result is meaningful energy savings and stronger ESG performance.
  • Advanced VFD speed control with full braking torque
  • Optional excess power flows back to the grid, eliminating braking thermal losses
  • Inherently low harmonics meeting IEEE 519 standards - automatically filtered based on motor loading changes
  • No brake resistors or harmonic filters required
  • 100% braking power at 100% duty cycle
  • Bidirectional rectifier allows power to flow in or out
  • Motor output identical to a standard VFD
  • Estimated energy savings of 20%+ vs. standard drives at comparable HP
  • Built on the same Industrial Edge Device platform as the Ken Well Manager for optimal compatibility
Liberty lift
Liberty lift | rrl automation & controls

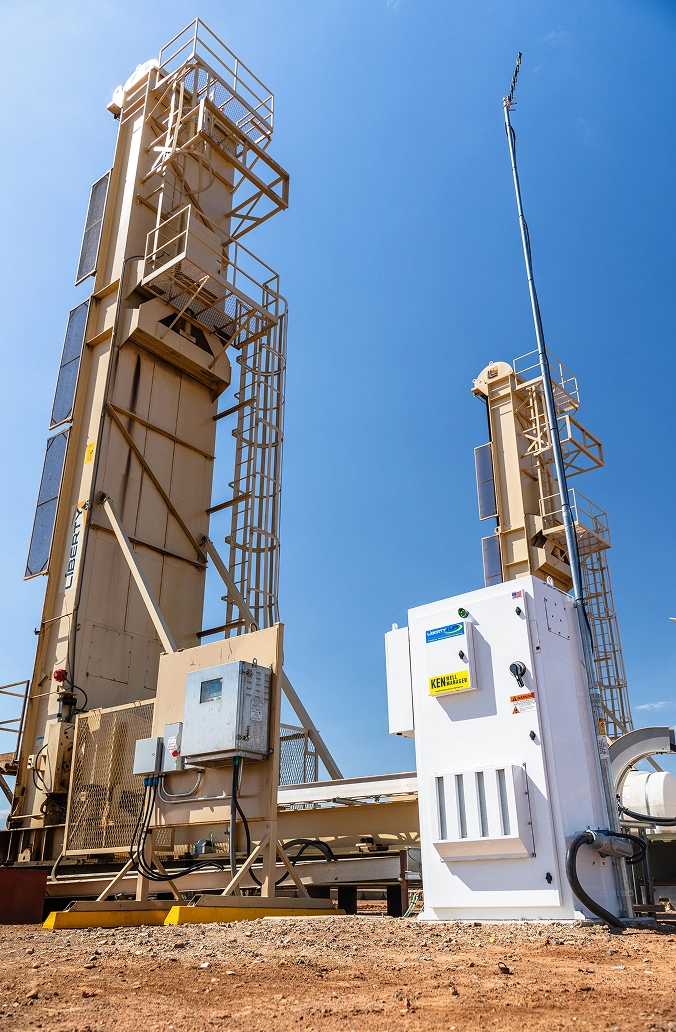

Unit Sentry

The Unit Sentry is a dedicated safety and monitoring device designed specifically for Liberty Lift XL Long Stroke pumping units. It provides continuous protection against mechanical faults and operating exceedances, automatically shutting down the unit and setting the emergency brake when conditions fall outside defined parameters. The Unit Sentry monitors critical operating parameters in real time, giving field personnel immediate visibility into unit status and fault history without requiring a trip to the wellsite.

Fault Monitoring & Protection

  • Vibration fault: shuts down unit and sets emergency brake if vibration exceeds set sensitivity
  • Overspeed fault: shuts down unit if SPM exceeds the overspeed set point
  • High load fault: shuts down unit if PPRL exceeds maximum polished rod load set point
  • Low load fault: shuts down unit if MPRL falls below minimum polished rod load set point
  • No oil pressure alarm: alerts when oiling system pressure falls below 1.0 psi
  • High/low oil pressure alarm: alerts when pump pressure exceeds or falls below alarm set points
  • Loss of load signal alarm: alerts if communication between load cell receiver and load cell is lost
  • VSD/RPC fault: shuts down unit per VSD/RPC determination
  • Customer-defined fault inputs (x2): supports additional monitoring systems installed by the operator

Talk to Our Rod Lift Automation Team About Any Well.

Our automation team is ready to help find the right rod lift solution, from the Ken Well Manager to drive packages and Unit Sentry. Reach out directly.
